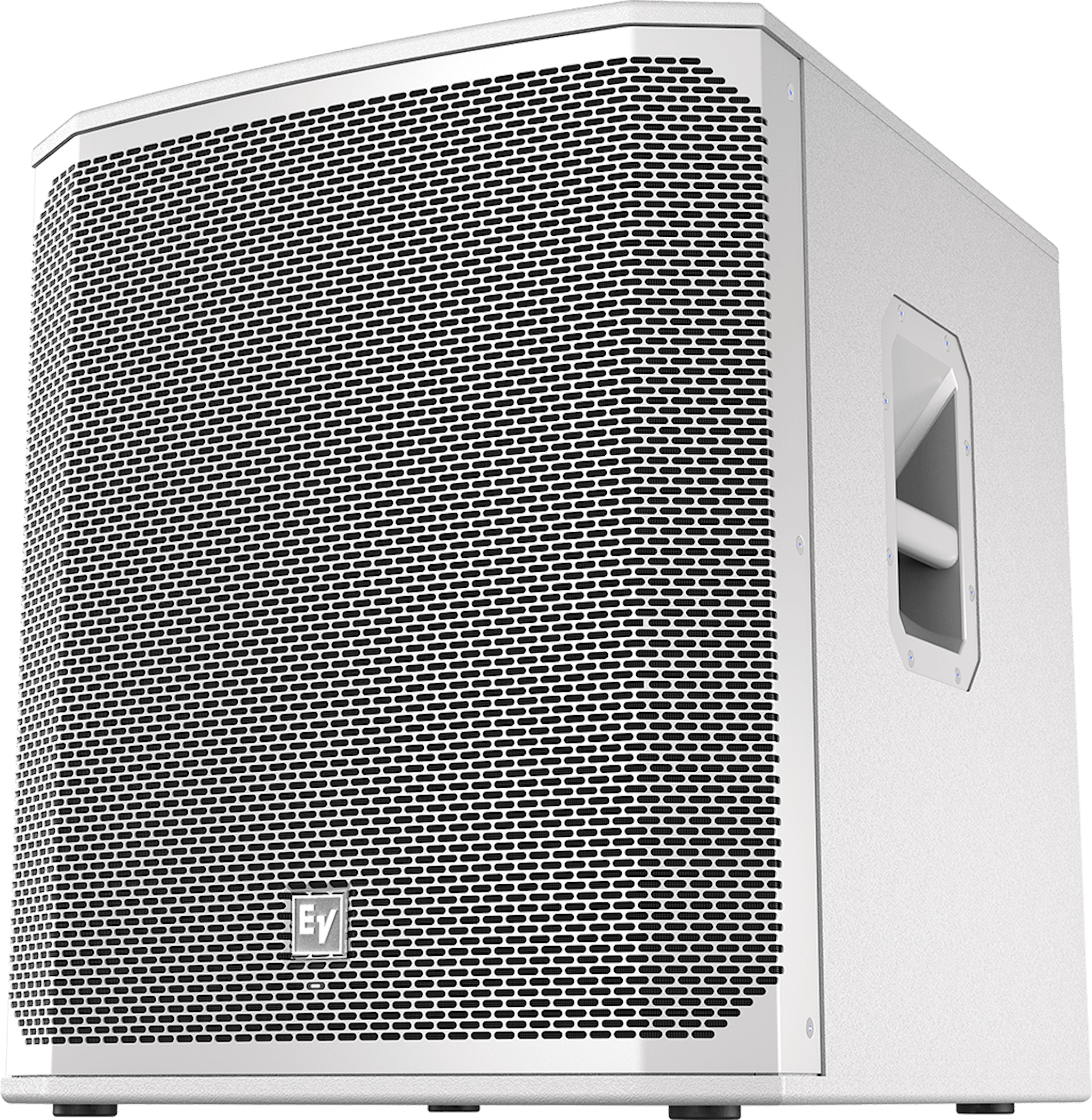

ELX200 18SP
Big Sub. Little Effort.
Our lightest 18-inch powered subwoofer, with 1,200 W of Class-D power and phone-based DSP in a wooden enclosure.
ELX200 18SP
18" Powered Subwoofer
productPage.variants
ELX200 12SP Black
ELX200 12SP White
ELX200 18SP Black
ELX200 18SP White
Anchor the whole system from one box. The ELX200 18SP drives a custom EVS-18L 18-inch woofer with up to 1,200 W of Class-D power and QuickSmartDSP, reaching up to 132 dB max SPL. Set the low pass at 80, 100, 120, or 150 Hz, pick Music, Live, or Club, and save five of your own presets. QuickSmart App over Bluetooth LE tunes up to six speakers from out front. Festival stage, club, large worship room: deep low end you control from the floor.
Key Features
Move Serious Air
up to 1,200 W Class-D drives the EVS-18L to a max 132 dB SPL.
Match the Room
selectable 80, 100, 120, or 150 Hz low-pass plus Music, Live, and Club presets.
Control It From Out Front
QuickSmart App over Bluetooth LE manages up to six speakers.
Run It Safe
onboard limiter monitoring protects the system at full output.
Move It Solo
integrated M20 pole-mount plate and two-handle design on a 15 mm wood box.
Steel up Front
an 18 AWG powder-coated steel grille fronts the EVCoat-finished enclosure.
productPage.info.specs
Acoustic Performance
- Max SPL
132
- Frequency Response
47 Hz - 105 Hz
- Frequency Range (-10 dB)
40 Hz - 145 Hz
Transducers & Drivers
- LF transducer size (in)
EVS-18L 457 mm (18 in)
- Element Type
EVS-18L 457 mm (18 in)
Power & Amplification
- Powered
true
