EVH 15/99
EVF/EVH G2 Series
EVH-15 G2
Horn-loaded 15-inch point source that holds its pattern at distance — the control specialist of the G2 range.

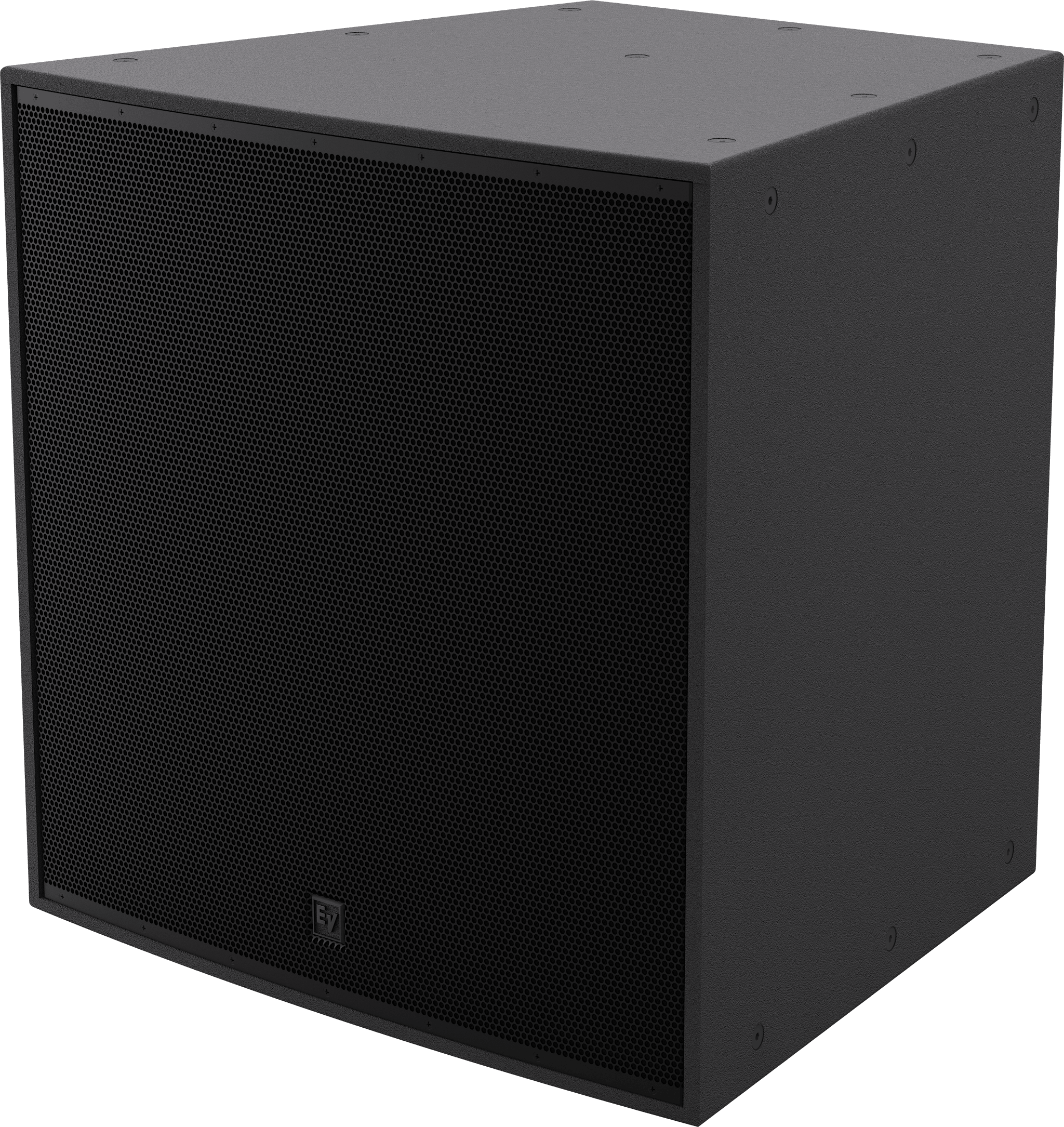

EVH 15/99
Horn-loaded 15" Point Source Loudspeaker 90° x 90° IP55 fully weatherized
productPage.variants
EVH 15/99 Black
EVH 15/99 Black
EVH 15/99 White
EVH 15/99 White
The G2 generation rebuilds the Electro-Voice point-source install range from the inside out. New in-house EV transducers, low-loss crossovers, and EV's highest-performance HF horns sit in the same footprint as the first generation, while new low-latency FIR presets deliver flat phase response with under 10 ms of system latency. The updated grille withstands high SPL even when wet, the enclosure is fully front-serviceable, and a single-step polyurea finish keeps white cabinets UV-stable outdoors.
The EVH-15 G2 is the pattern-control specialist: a horn-loaded 15-inch design that holds coverage tight for long throw and reverberant rooms. Five patterns from 40°×30° to 90°×90° deliver up to 123 dB linear and 141 dB peak output (AES75) from 400 W continuous power handling, with 30 M10 hard points for rigging into mid-sized stadiums, high-SPL music venues, and houses of worship.
What the EVH-15 G2 brings
Horn-loaded control
Five patterns — 40°×30°, 60°×40°, 60°×60°, 90°×50°, 90°×90° — hold coverage at distance.
Output headroom
Up to 123 dB linear / 141 dB peak (AES75), pattern-dependent, from 400 W continuous.
G2 acoustics
New in-house transducers, low-loss crossovers, and EV's highest-performance HF horns — in the first generation's footprint.
30 rigging points
30× M10 hard points plus U-bracket, eyebolt, and rigging-kit options.
Weatherized options
IP55 fully-weatherized versions handle full exposure, including high-salt marine air (moisture cover + 5° down-tilt).
FIR-ready processing
Low-latency FIR presets with flat phase response; system latency under 10 ms.
Frequency response (−3 dB): 62 Hz – 18 kHz · range (−10 dB): 55 Hz – 20 kHz
Max SPL (AES75): 121–123 dB linear / 139–141 dB peak, by pattern
Power handling: 400 W continuous / 800 W program (8 Ω nominal, 6 Ω minimum)
Coverage patterns: 40°×30° · 60°×40° · 60°×60° · 90°×50° · 90°×90°
Preset high-pass: 50 Hz · connections: 10 AWG Euroblock + NL4
Rigging: 30× M10 hard points
769 × 769 × 681 mm · 68–73.5 kg by pattern · RAL9005 / RAL9003 · IP55 weatherized versions · −20 to +50 °C operating
All figures from the EVH-15 G2 engineering data sheet.
productPage.info.specs
Acoustic Performance
- Frequency Range (-10 dB)
55 Hz - 20 kHz
- Coverage angle (V)
30
- Coverage Angle
90 × 90
Power & Amplification
- Power handling (continuous) (W)
400
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6
